led seven segment display | LED display 0.3 inch

0,30 pouces unique de sept segments à LED

BL-S30A-15,BL-S30B-15

LED components | LED display 0.3 inchseven segment display led | LED display 0.3 inch
Brand BETLUX
Part NO BL-S30A-15,BL-S30B-15
Dimension 10.06*19.00*5.40 mm
Weight 1.3800g
Package 250pcs/bag
Datasheet pdf
ImprimerE-mail
Feature: Description du produit

0,30 pouces
0,30 pouces de hauteur chiffres (7.40mm) largeurxhauteur
: 10.06 * 19.00mm

anode commune ou cathode commune sélectionnée
Courant Faible Opération
Anode commune et commune de cathode disponibles
Excellent caractère Apparence
rendement lumineux élevé
Easy montés sur des cartes PC ou
Sockets IC Compatible

Multicolor Disponible Categorized pour
Intensité lumineuse Techniquement />
segment de conformité RoHS

RoHs Compliance, Pb-free Anti-Static Attention

Electrical-optical characteristics:

Part No C.C.Part No C.A.colorwavelengthV typical(V)V max(V)Brightness(mcd)
BL-S30A-15DBL-S30B-15DSuper Bright Red6601.852.212
BL-S30A-15SBL-S30B-15SHigh Bright Red6601.852.26
BL-S30A-15URBL-S30B-15URUltra Bright Red6601.852.214
BL-S30A-15EBL-S30B-15EOrange6352.12.510
BL-S30A-15UEBL-S30B-15UEHigh Bright Orange6302.12.512
BL-S30A-15YBL-S30B-15YYellow5852.12.510
BL-S30A-15UYBL-S30B-15UYHigh Bright Yellow5902.12.512
BL-S30A-15GBL-S30B-15GGreen5702.22.510
BL-S30A-15UGBL-S30B-15UGHigh Bright Green5742.22.518
BL-S30A-15PGBL-S30B-15PGSuper Pure Green5253.04.222
BL-S30A-15BBL-S30B-15BSuper Bright Blue4703.04.225
BL-S30A-15UBBL-S30B-15UBSuper Bright Blue4703.04.231.5
BL-S30A-15WBL-S30B-15WWhite-2.74.230

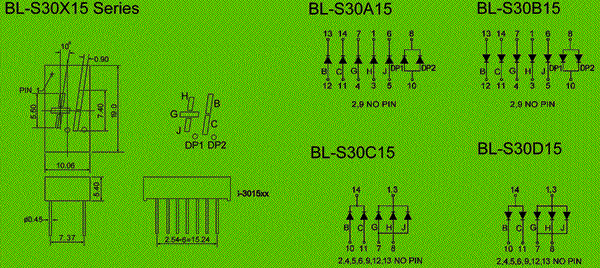

Package configuration & Internal circuit diagram
LED components | LED display 0.3 inch dimensional drawing

All dimensions are in millimeters(inches)
Tolerance is +-0.25(0.01") unless otherwise note
Specifications are subject to change without notice.

Absolute maximum ratings (Ta= 25?C)

Reflector Surface color (1st number)/ Segment Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused

Absolute maximum ratings (Ta= 25°C)

Parameter   S D UR E Y G Unit
Forward Current IF   25 25 25 25 25 30 mA
Power Dissipation Pd   60 60 60 60 60 65 mW
Reverse Voltage VR   5 5 5 5 5 5 V
Peak Forward Current IPF (Duty 1/10 @1KHZ)   150 150 150 150 150 150 mA
Operation Temperature TOPR -40 to +80 °C
Storage Temperature TSTG -40 to +85 °C
Lead Soldering Temperature TSOL   Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) °C

Absolute maximum ratings (Ta= 25°C)

Parameter UHR UE YO UY UG PG UB UW Unit
Forward Current IF 30 30 30 30 30 30 30 30 mA
Power Dissipation Pd 75 65 65 65 75 110 120 120 mW
Reverse Voltage VR 5 5 5 5 5 5 5 5 V
Peak Forward Current IPF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 100 100 mA
Operation Temperature TOPR -40 to +80 °C
Storage Temperature TSTG -40 to +85 °C
Lead Soldering Temperature TSOL Max.260+ 5°C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) °C

Partno description:

LED seven segment , called also LED numeric display, is widely applied in home appliance panel display and other application.

Part No of Seven segment LED display
