 | Product: | 4.8mm Bullet LED diode |
| P/N: | BL-L48 | |
| Dimension: | 25.4mm Lead Length | |
| kinds | LED diode -> LED bullet | |
| Datasheet: |  |
Feature:
Features: 4.8mm Round-Helmet Type LED Lamp
\Ultra brightness.
\Choice of various viewing angles.
\Diffused, Transparent and Water clear lens are available.
\IC compatible /Low current capability.
\RoHs Compliance
RoHs Compliance
Super bight LED diodes Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
| Part Number | Chip | Lens Type | Forward Voltage(VF) Unit:V | Luminous Intensity (Iv) Unit:mcd | Viewing Angle 2θ1/2(deg) | ||||
| Emitted Color | Material | l P (nm) | |||||||
| Typ | Max | Min. | Typ. | ||||||
BL-L48UEC |
Ultra Orange |
AlGaInP |
630 |
Water Clear |
2.10 |
2.50 |
200 |
500 |
80 |
BL-L48UYC |
Ultra Yellow |
AlGaInP |
590 |
2.10 |
2.50 |
200 |
500 |
||
BL-L48UGC |
Ultra Green |
AlGaInP |
574 |
2.20 |
2.50 |
140 |
300 |
||
BL-L48PGC |
Ultra Pure Green |
InGaN |
525 |
3.80 |
4.50 |
500 |
1000 |
||
BL-L48BGC |
Ultra Bluish Green |
InGaN |
505 |
3.80 |
4.50 |
300 |
700 |
||
BL-L48BC |
Ultra Blue |
InGaN |
470 |
3.00 |
4.20 |
500 |
1000 |
||
BL-L48UBC |
Ultra White |
InGaN |
/ |
3.00 |
4.20 |
500 |
1200 |
||
BL-L48VC |
UV |
InGaN |
405 |
3.80 |
4.50 |
60 |
90 |
||
BL-L48UWC |
Ultra White |
InGaN |
8000k |
3.00 |
4.20 |
2000 |
10000 |
||
BL-L48UW 2C |
Ultra White |
InGaN |
3000k |
3.00 |
4.20 |
2000 |
5000 |
||

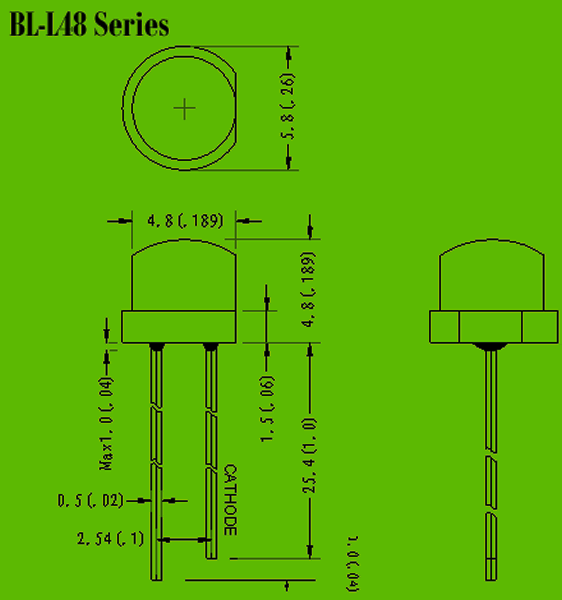

Package configuration & Internal circuit diagram
Notes:
1. All dimensions are in millimeters (inches)
2. Tolerance is ±0.25(0.01")unless otherwise noted.
3. Specifications are subject to change without notice.
Lens Color:
| Code | D | T | C | W | E | |
| Meaning | color Diffused | Color Tinted | Water Clear | Water Diffused | Orange diffused |
| Parameter | SR | LR | UR | UE | UY | UG | PG | BG | B | UB | UV | W | Unit |
| Forward Current I F | 25 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
| Power Dissipation P d | 60 | 60 | 60 | 65 | 65 | 75 | 110 | 110 | 120 | 120 | 120 | 120 | mW |
| Reverse Voltage V R | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | V |
| Peak Forward Current I PF (Duty 1/10 @1KHZ) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 100 | 100 | 100 | 100 | 100 | mA |
| Operation Temperature T OPR | -40 to +80 | °C | |||||||||||
| Storage Temperature T STG | -40 to +85 | °C | |||||||||||
| Lead Soldering Temperature T SOL | Max.260± 5°C for 3 sec Max. (1.6mm from the base of the epoxy bulb) | °C | |||||||||||
